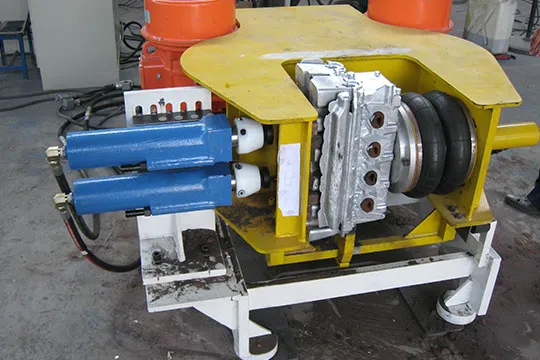

Vibratory Sand Shedding Machine for Foundry

Industry Background and Market Demand

Metal casting remains a cornerstone in industries such as automotive, aerospace, heavy machinery, and energy. After casting, residual sand adheres to the surface, requiring efficient removal to maintain dimensional accuracy, surface quality, and downstream process efficiency. Traditional methods, such as manual brushing or low-efficiency tumblers, are labor-intensive, inconsistent, and often damage the casting surface.

With increasing demand for high-volume production and superior product quality, foundries require automated solutions that reliably remove sand without affecting casting integrity. Vibratory sand shedding machines have emerged as a critical technology to meet these industrial needs, combining speed, consistency, and safety.

Core Concepts and Key Technologies

A vibratory sand shedding machine utilizes high-frequency vibration to dislodge residual sand from metal castings. By transmitting controlled mechanical energy through a vibrating tray or frame, the machine separates sand while leaving the casting intact. Adjustable vibration frequency and amplitude allow operators to optimize performance for different casting weights, sizes, and sand types.

Key technological features often include:

• Precision Vibrators or Exciters: Generate controlled motion for uniform sand removal.

• Programmable Controls: Adjust cycle duration, frequency, and amplitude for specific casting types.

• Dust Management Systems: Integrated extraction units minimize airborne particles, improving workplace safety and environmental compliance.

Product Structure, Performance, and Manufacturing Considerations

A typical vibratory sand shedding machine consists of:

• Vibrating Tray or Conveyor: Supports castings and transmits vibration to remove sand.

• Heavy-Duty Frame: Constructed from wear-resistant steel to withstand continuous vibration.

• Excitation System: Electric motors or hydraulic actuators that drive oscillation.

• Screening or Sorting Layer (Optional): Captures larger sand particles for recycling or disposal.

• Control Panel: Allows operators to customize settings according to production requirements.

Performance metrics include sand removal efficiency, cycle time, throughput, energy consumption, and vibration stability. High-quality materials, precision welding, and reinforced structures ensure long-term durability and minimal maintenance requirements.

Key Factors Affecting Sand Removal Quality

The efficiency and consistency of sand shedding are influenced by several factors:

• Casting Geometry: Complex cavities or thin walls may retain sand, requiring tailored vibration patterns.

• Sand Composition: Grain size, moisture content, and binder type affect separation behavior.

• Load Distribution: Even placement of castings ensures uniform sand removal.

• Vibration Parameters: Incorrect frequency or amplitude can reduce efficiency or damage the casting.

• Maintenance and Wear: Worn components or misaligned systems diminish performance over time.

Proper configuration, routine inspection, and preventive maintenance are critical to maintaining optimal sand shedding performance.

Supplier and Equipment Selection Criteria

Choosing the right supplier is vital for operational efficiency. Foundries should consider:

• Proven experience in manufacturing vibratory sand shedding machines

• Customization capabilities for different casting sizes and materials

• Use of wear-resistant materials and durable mechanical components

• Availability of technical support, spare parts, and service agreements

• Compliance with safety, environmental, and industrial standards

Suppliers with application-specific expertise can recommend optimal configurations, reducing commissioning time and minimizing production disruptions.

Common Industry Challenges and Pain Points

Despite automation, sand shedding presents several challenges:

• Incomplete Sand Removal: Residual sand may affect machining, heat treatment, or surface finishing.

• Casting Damage: Excessive vibration or improper fixture support can lead to cracks or deformation.

• Dust and Noise Pollution: High-frequency vibration generates dust and noise, requiring mitigation.

• Maintenance Requirements: Components exposed to constant vibration are subject to wear and require regular inspection.

Modern machines address these issues through precision engineering, controlled vibration, and integrated dust collection systems.

Application Scenarios and Industry Use Cases

Vibratory sand shedding machines are widely employed in:

• Automotive Foundries: Cleaning engine blocks, cylinder heads, and transmission housings.

• Heavy Machinery Production: Removing sand from large steel or iron castings used in construction equipment.

• Aluminum and Non-Ferrous Foundries: Preparing surfaces for machining, anodizing, or painting.

• Continuous Production Lines: Integrating with conveyors, decoring machines, or surface finishing systems for seamless operations.

These machines improve throughput, reduce labor costs, and ensure consistent product quality across high-volume production lines.

Current Trends and Future Development

The foundry industry is increasingly adopting automation, energy efficiency, and environmental sustainability. Current trends include:

• Smart Controls: Programmable vibration parameters and real-time monitoring for optimal performance.

• Energy-Efficient Drives: Reduce power consumption without compromising sand removal quality.

• Dust and Noise Reduction Systems: Improve compliance with workplace safety and environmental regulations.

• Integration with Industry 4.0: Sensor-based monitoring, predictive maintenance, and data-driven process optimization.

Future advancements may focus on adaptive vibration systems that automatically adjust parameters for different casting types, improving efficiency while minimizing casting stress and operational costs.

Frequently Asked Questions

Can the machine handle multiple casting sizes?
Yes. Adjustable trays and programmable vibration cycles allow flexibility for a range of casting dimensions.

Does vibration damage delicate castings?
Controlled vibration ensures effective sand removal while preserving casting integrity.

Is the dislodged sand recyclable?
Collected sand can be directed to reclamation systems, supporting sustainable foundry operations.

The vibratory sand shedding machine provides a reliable, high-efficiency solution for modern foundries. By combining robust construction, precise vibration control, and integrated dust management, it enhances production consistency, improves casting quality, and supports safer, environmentally compliant operations.
