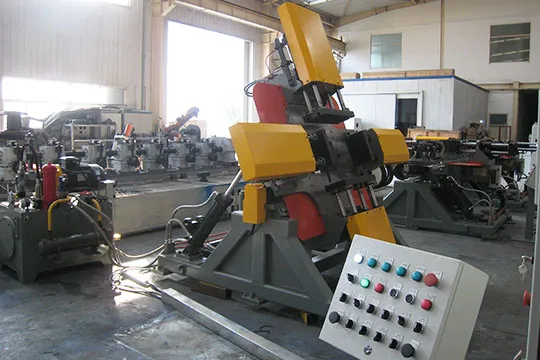

J36 series Tilting Metal Mould Gravity Casting Machine is a kind of advanced and efficient non-ferrous Metal Casting Equipment.
The machine adopts front, back, left and right double tilting mechanism to complete casting pouring in the process of variable speed tilting. The technology is conducive to the exhaust of mould and filling of liquid metal in the casting process. It can improve the internal quality of castings and the yield of castings.
The equipment has a high degree of automation, simple operation and maintenance. Suitable for the production of a variety of small aluminum alloy castings, such as power steering gear.
Technical Data 1
| Name | J366 | J348 | J348A | Unit |
| Left and Right Cylinder Stroke | 200 | 200 | 300 | |
| Die Locking Force | 70 | 140 | 90 | |
| Left and Right Minimum Opening Distance | 500 | 800 | 700 | |
| Lower Core-pulling Cylinder | 150 | 100 | 200 | |
| Ejector Force | 60 | 140 | 140 | |
| Rack Tilt Angle | 0-90 | 0-30 | 0-90 |
J36 Series Industrial Hydraulic Tilting Metal Mould Gravity Casting Machine: Precision and Efficiency for Modern Foundries
The global metal casting industry has been evolving rapidly, driven by the increasing demand for high-precision components and efficient production processes. Traditional gravity casting methods, while reliable, often face challenges such as inconsistent filling, porosity, and surface defects. Industries including automotive, aerospace, heavy machinery, and industrial equipment require solutions that can deliver uniform metal flow, repeatable quality, and high production efficiency. The J36 Series Industrial Hydraulic Tilting Metal Mould Gravity Casting Machine addresses these needs by combining hydraulic automation with precise tilting control, enabling foundries to meet stringent quality standards while optimizing operational efficiency.
Gravity casting leverages the natural force of gravity to fill a mould with molten metal. The J36 Series introduces a fully hydraulic tilting mechanism, allowing operators to control pouring speed and angle with high precision. This controlled tilt reduces turbulence in the molten metal, minimizes defects such as air entrapment and cold shuts, and ensures uniform solidification.
Hydraulic actuation provides smooth, repeatable movement and reduces mechanical stress on the machine frame. The system’s programmable tilt sequences allow for adaptable casting strategies, accommodating complex geometries and various alloy types. By integrating hydraulic precision with industrial automation, the J36 Series ensures consistent mechanical properties and high-quality surface finishes in each casting.
The J36 Series features a robust steel frame designed for long-term durability under high operational loads. Its key components include a tilting platform, hydraulic cylinders, mould clamping mechanisms, and a control system that enables programmable tilt angles and pouring sequences.
Construction materials are selected for strength, thermal resistance, and wear resistance. High-grade steel and alloyed components form the structural framework, while precision hydraulic components ensure smooth operation. Manufacturing involves CNC machining, high-precision welding, and hydraulic calibration, resulting in a machine capable of stable, accurate performance under continuous industrial use.
Performance highlights include smooth tilting operations, reduced spillage, and minimized material waste. The modular design allows for rapid mould changes and flexible adaptation to different casting volumes, making the machine suitable for a wide range of production needs.
Key factors affecting casting quality with the J36 Series include:
Hydraulic System Calibration: Precise control of tilt speed and angle is critical for uniform metal flow.
Mould Preparation: Proper mould design and maintenance reduce defects and enhance surface finish.
Metal Temperature Management: Consistent molten metal temperature ensures optimal mechanical properties.
Operator Skill: Proper programming and supervision enhance repeatability and safety.
Regular Maintenance: Timely inspection of hydraulic components, seals, and control systems preserves performance.
Selecting a reliable supplier ensures that the machine meets industrial standards and receives consistent technical support. Key criteria include:
Certification of hydraulic and mechanical components to ISO or ASTM standards.
Proven experience in designing and manufacturing Tilting Gravity Casting Machines.
Availability of after-sales service, spare parts, and technical training.
Capability to customize solutions for specific alloys, casting sizes, or production volumes.
A supplier providing integrated design, manufacturing, and commissioning services helps minimize downtime and maximize production efficiency.
Gravity casting often faces issues such as uneven filling, porosity, surface imperfections, and material waste. Traditional machines may produce abrupt tilt movements or inconsistent pouring, resulting in casting defects. Manual handling of heavy moulds can also pose safety risks. The J36 Series mitigates these challenges through automated hydraulic tilting, stabilized mould movement, and ergonomic design, improving both casting quality and operator safety.
The J36 Series is widely applied in automotive parts manufacturing, aerospace alloy casting, and industrial machinery component production. Typical use cases include engine blocks, gearbox housings, pump casings, and structural alloy components. The machine’s precise control over pouring and solidification ensures consistent mechanical properties and reduces rework. Its modular design allows foundries to switch between different alloy types and casting volumes without sacrificing efficiency.
The metal casting industry is increasingly moving toward automation, predictive maintenance, and Industry 4.0 integration. Future advancements for the J36 Series may include real-time sensor monitoring of metal flow, AI-assisted tilt optimization to reduce defects, and energy-efficient hydraulic systems. These innovations aim to enhance operational efficiency, improve casting quality, and reduce overall production costs.
What alloys are compatible with the J36 Series?
The machine supports a wide range of ferrous and non-ferrous alloys, including aluminum, copper, and zinc-based metals.
How does hydraulic tilting improve casting quality?
Controlled tilt speed and angle reduce turbulence, minimize porosity, and enhance surface finish consistency.
Is the machine suitable for high-volume production?
Yes, the modular design and rapid mould change capability support high-efficiency casting operations.
The J36 Series Industrial Hydraulic Tilting Metal Mould Gravity Casting Machine delivers precision, reliability, and operational efficiency, making it an essential tool for modern foundries seeking high-quality, repeatable casting performance.
